Sale!

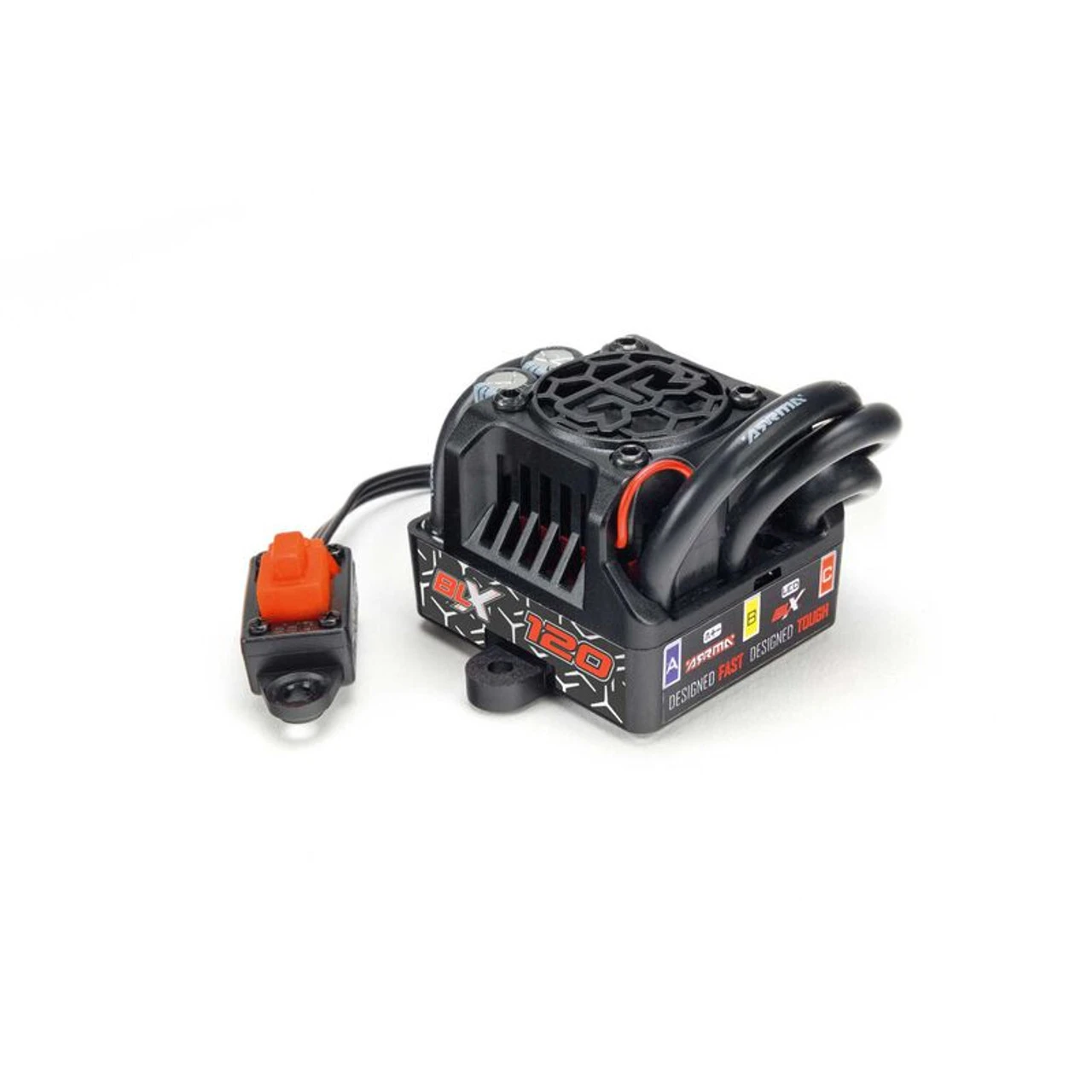

Arrma ARA390264 BLX120 Brushless 4S ESC

Original price was: $126.99.Current price is: $88.89.

SKU: AG9IY 400000022727 Categories: All RC Parts, Motors, Servos, & ESCs Tag: Arrma

Quality You Can Trust
There are quality problems, free return and exchange
Protect Your Wallet with Safe Payments
SSL encryption, absolutely safe shopping

Description
Reviews (0)

Write a review

BLX120 Brushless 4S ESC

ARA390264

$109.99

Free financing available through Easy Pay ⓘ

Earn 2199 points on this item ⓘ

In Stock

Product Details

The BLX120 120A waterproof ESC provides consistent power control and is 4S LiPo ready.

Features

Fitted with super-reliable EC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX120 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

SPECIFICATION

Battery usage	3S LiPo (11.1V) or 4S LiPo (14.8V)
Low Voltage Cut-Off (LVC)	3.4V per cell
Thermal Protection Temperature	125°C / 257°F
Over-Voltage Protection	Over 17.2V
BEC Voltage	6V
BEC Current	3A
ESC Length	43mm / 1.69″
ESC Height	34mm / 1.34″
ESC Width	54.5mm / 2.15″ (Including hold-down tabs)
ESC Weight	150g / 5.3 oz
Receiver Wire Length	170mm / 6.70″
Battery Wire Length	225mm / 8.86″
Motor Wire Length (Including Connector)	200mm / 7.87″
Switch Length	21mm / 0.83″
Switch Width	13.3mm / 0.52″
Switch Height	16mm / 0.63″
Motor Bullet Connector Size	4mm / 0.16″
Wire Specifications	12AWG
ESC Battery Connector Type	2xEC5
