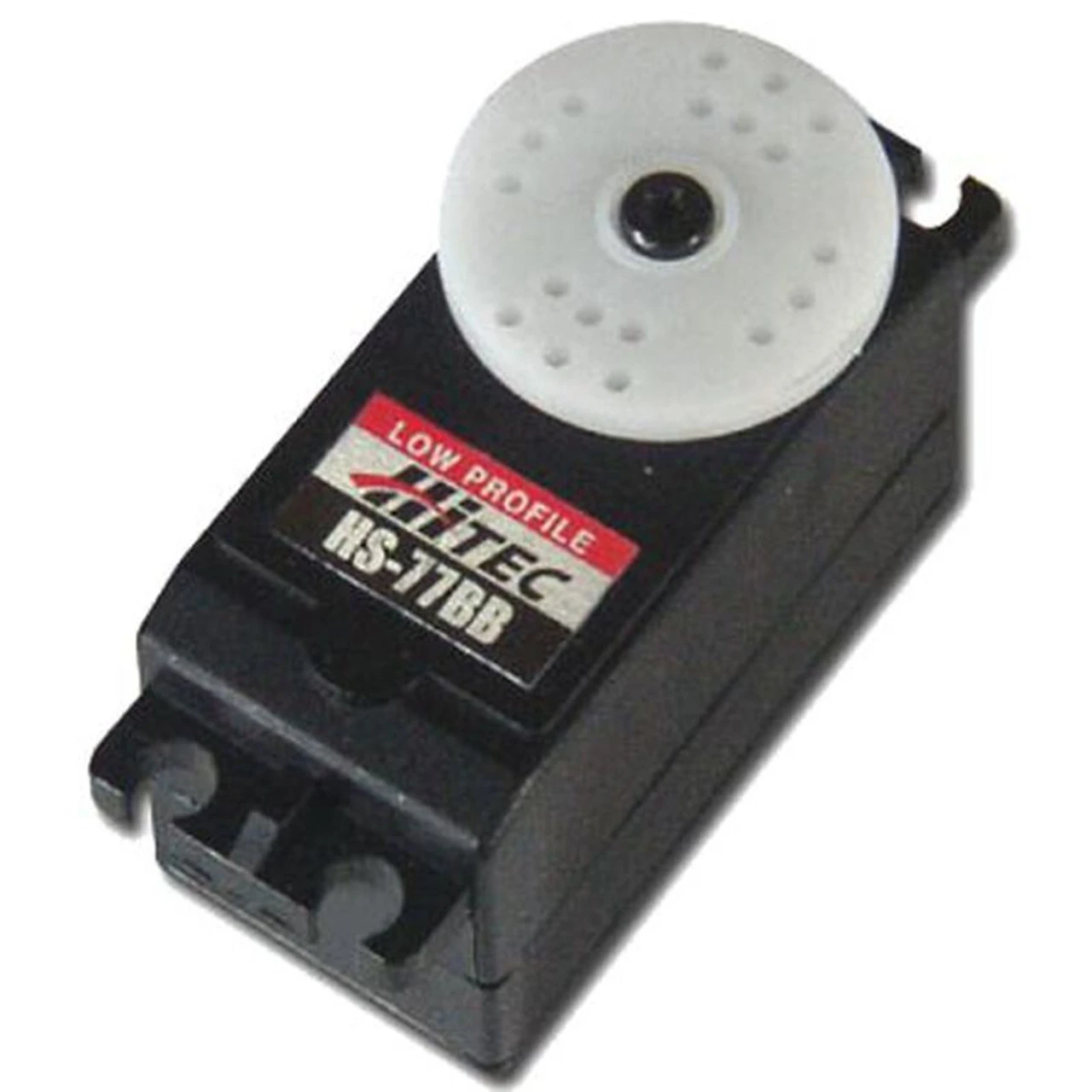

Hitec HRC31077S HS 77BB Standard Analog Low Profile Servo

Original price was: $29.99.Current price is: $20.99.

SKU: AG9IY 400000010861 Categories: All RC Parts, Motors, Servos, & ESCs Tag: HiTEC

Quality You Can Trust
There are quality problems, free return and exchange
Protect Your Wallet with Safe Payments
SSL encryption, absolutely safe shopping

Description
Reviews (0)

Overview

With its low profile design and strong standing torque the HS-77BB is a great choice for wing or tail mounting in aircrafts up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servo’s strength and compact size.

Product Specifications

Specs

Current Draw Idle	8mA
Bushing Or Bearing	Bearing
Bearing	Single
Speed	0.18 sec/60 deg @ 4.8V; 0.14 sec/60 deg @ 6V at no load
Torque	61.1 oz/in (4.4kg/cm) @ 4.8V 76.3 oz/in (5.5kg/cm) @ 6V
Maximum Servo Torque	40-99 oz-in
Motor Type	3-pole
Maximum Servo Speed	0.100-0.149 sec
Gear Type	Plastic
Deadband	8 microsecond
Servo Size Category	Standard
Servo Operating Voltage	4.8 – 6.0V
Programmable	No
Servo Type	Analog
