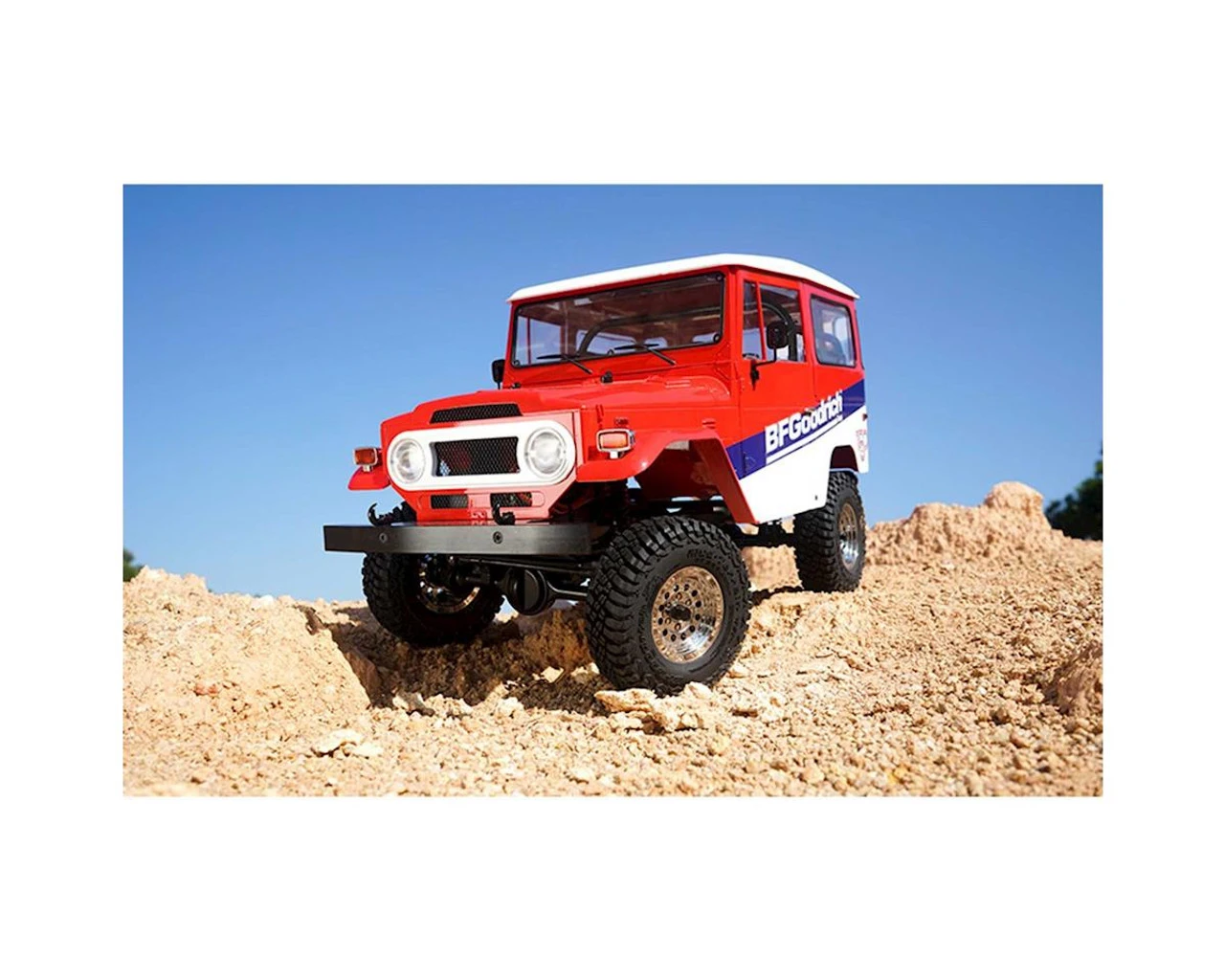

RC4WD 1/10 Gelande II 4WD RTR Truck Kit, Cruiser Body RC4ZRTR0102

This is a RC4WD Gelande II BFGoodrich 150th Anniversary RTR 1/10 Scale 4WD Crawler is a versatile model that can pull off multiple looks and styles. The limited edition red, blue and white color scheme commemorates BFGoodrich’s 150th year anniversary along with custom factory-applied decals. The Cruiser Body has an awesome assortment of scale details including mirrors, door handles, vents and a grill to match the 1:1 real vehicle. All lights and marker lamps can be illuminated with an optional RC4WD LED light kit.



The G2 is built with quality materials and craftsmanship, with features like the R3 single speed transmission to provide power down to the transfer case and out to the proven Yota II axles. A four link rear and three link panhard bar suspension as a standard feature and the chassis mounted servo is out of view for a more scale appearance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast.



• Custom Designed for True to Scale Looks
• Realistic Aluminum Ladder Frame Chassis
• R3 Single Speed Transmission
• Center Mounted Realistic 4X4 Transfer Case
• Yota II Ultimate Scale Cast Axles
• 3 Link Front and 4 Link Rear Suspension
• RC4WD Chrome 1.9″ Beadlock Wheels
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.9 Tires
• Chassis Mounted Steering Servo
• Plastic Fuel Cell Receiver Box
• Dual Spring Oil Filled Shock Absorbers

Ratio: 1.47:1

Gears: Wide .8 Mod Hardened Steel Gears, 8 Bearings, Cast Casing

Ratios: Pinion/Spur 14/64 = 4.57:1

Internal Ratios: 1.78:1

Gears: – Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Ratio: 15/40 = 2.67:1

Width at Hex (Using 4mm TF2 Hexes): 178.2mm

G2 Suspension: 3 Link Suspension with Panhard Bar, Double Triangulated 4 Link Rear Suspension

Shock Absorbers: Dual Spring 80mm Shocks – Can be Oil Filled

Type: RC4WD Chrome 1.9″ Beadlock Wheels

Hub: 12mm Hex

Width: 26mm (1.02″)

OD: 54mm (2.14″)

Bumpers: Machined Billet Aluminum, Lightweight

Wheelbase: 10.8in / 275mm

Length: 18.3in / 465mm

Width: 8.2in / 210mm

Height: 10.7in / 274mm

Ground Clearance: 2.4in / 61mm

Final Drive Ratio: 31.9:1

Weight: 8.35Lbs / 3.79Kg



• (1) RC4WD Gelande II RTR 1/10 Scale Truck Kit
• (1) Cruiser Body Set (BFGoodrich 150th Anniversary Edition)
• (1) 2.4GHz Radio
• (1) Decal Sheet
• (1) 6S 3000mAh NIHM battery
• (4) AA Batteries
• (1) Lipo Charger
